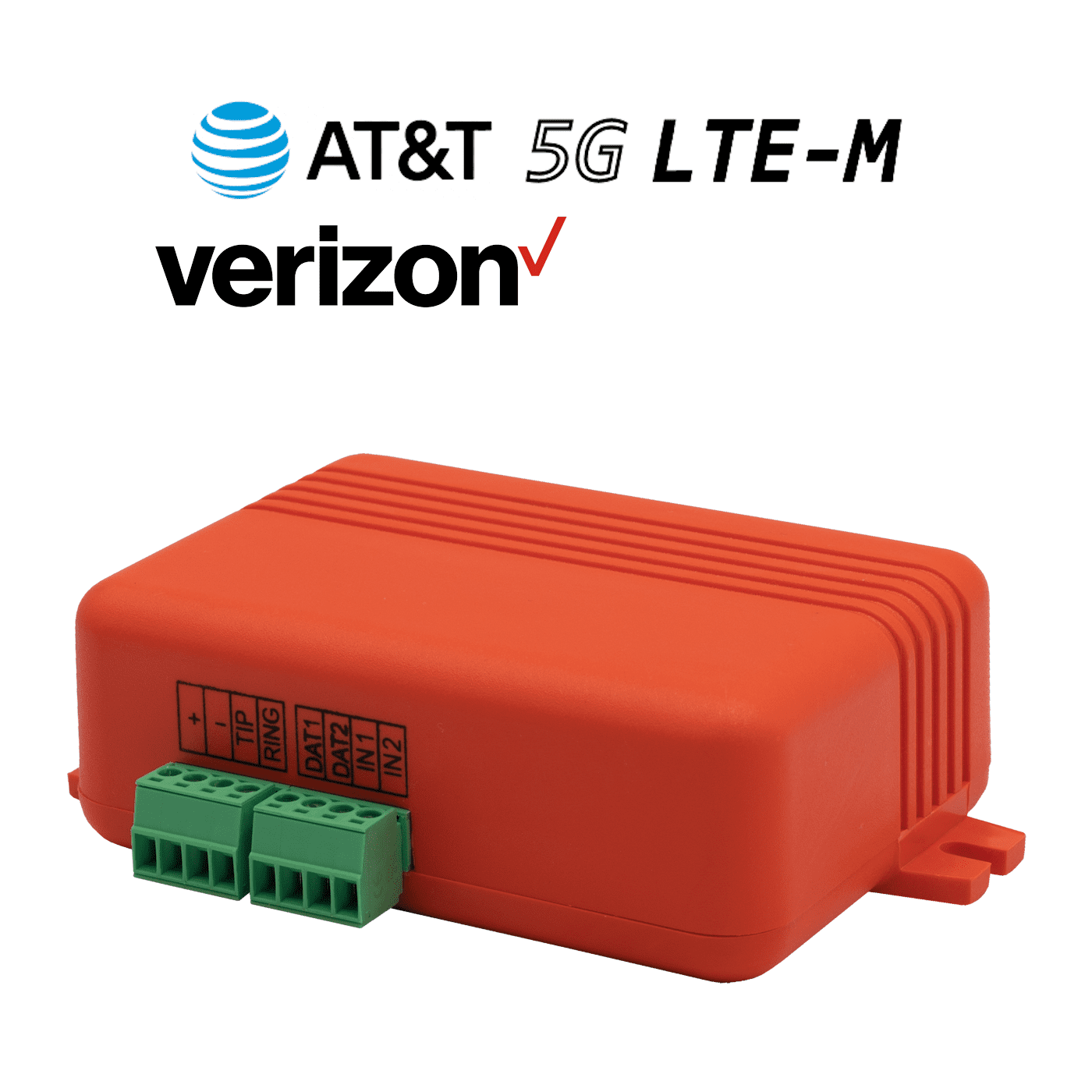

5530M - Uplink Univeral Primary Dual SIM Cellular 5G AT&T/Verizon LTE-M Alarm Communicator (Compatible with Security Panels)

5530M - Uplink Univeral Primary Dual SIM Cellular 5G AT&T/Verizon LTE-M Alarm Communicator (Compatible with Security Panels)
5530M - Uplink Univeral Primary Dual SIM Cellular 5G AT&T/Verizon LTE-M Alarm Communicator (Compatible with Security Panels)
Item# 5530M
List Price: $176.23
Your Price: $117.49
Availability: In Stock
QTY:

Uplink 5530 Product Description:


The Uplink 5530M is a universal primary cellular LTE-M technology alarm communicator designed for most existing hardwired burglary/fire control panels. The 5530M includes a dual-SIM, for either AT&T or Verizon LTE-M network, to transmit secure data to the AlarmClub central monitoring station. The device features full events reporting for use as a primary communicator, perfect for any location.

The dial-capture technology provides universal compatibility with virtually any alarm panel. The device also enables keybus integration and remote Upload/Download with selected alarm panels. On-board input and output terminals allow remote arming and disarming, using a smartphone. The 5530M communicates to AlarmClub central station in the most popular alarm formats (Contact ID, SIA, and Pulse 4+2).

The 5530M includes the latest LTE CAT M1 technology for the best performance and longest life cycle. Compatible with 3G and LTE cellular networks. It was designed by Uplink as a summary event alarm communicator. Installation and activation of the 5530M is quick and easy with the assistance of a GeoArm technician.

Product Features:

  • Works on both Verizon and AT&T networks in the same radio
  • Compatible with any alarm panel supporting CID, SIA and 4+2
  • Supports keybus and remote UDL for selected panels
  • End-user smartphone app for remote arming and disarming
  • Installer app for on-site testing of status and signal strength
  • Powers from the panel and comes pre-activated for quick and easy installation

Uplink 5530M Product Specifications:


Inputs and Outputs


  • Two Inputs: 2 Digital Inputs


Status LED's


  • Slow flashing - trying to establish connection
  • Constantly on - connection established at good signal level
  • Constantly on - blinging every 5 sec. - connection established at low signal level
  • Fast flashing - transferring


Reporting


  • Interface to Alarm Panel: Dial-Capture Interface: ContactID, SIA or Pulse
  • Central Station Reporting: ContactID, SIA, Pulse 4/2 full event reporting
  • Other Reporting Methods: Push notifications, Email


Power Requirements


  • Voltage: Network, Service, Communications
  • Consumption: Standby 15mA, Peak 200mA


Radio


  • Technology: LTE CAT M1
  • Networks: Dual-SIM with Verizon and AT&T
  • Frequency bands: 700/850/1700/1900/2100 MHz


Environmental


  • Operating Temperature Range: 32°F to 120°F (0°C to +49°C)
  • Humidity: 0 to 85% non-condensing


Dimensions


  • Height, Width, Depth: 2.50 x 3.55 x 1.26 inches (device only)
  • Weight: 2.65 oz without an antenna
  • Antenna: 3 feet cable

Uplink 5530M Product Applications:


  • Home Security
  • Business Security
  • Convenience Stores
  • Drug Stores
  • Jewelry Stores
  • Restaurants
  • Retail Shops
  • Specialty Stores
  • Supermarkets
