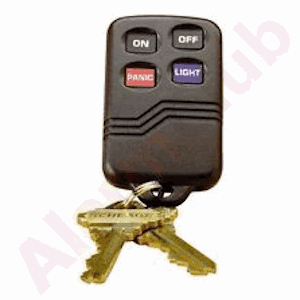

Honeywell 5804E Wireless Remote Alarm Keyfob w/Encryption (4-Buttons)

Honeywell 5804E Wireless Remote Alarm Keyfob w/Encryption (4-Buttons)

Honeywell 5804E Product Description:


The Honeywell 5804E is a 4-button keyfob that supports the High-Security mode, which sends rolling-code encrypted messaging to the RF receiver. The 5804E is a great addition to any Honeywell wireless control panel or other compatible Honeywell security system. Add this keyfob to your keychain and enjoy the ease of arming and disarming your home security system with the touch of a button. With a 5804E, you will no longer have to rush to enter your alarm code to avoid a false alarm. Simply press the "Off" button as you approach your front door, and your system will disarm itself. In addition, each of the four buttons can be custom programmed to your needs.

When programming the 5804E keyfob, each unit is assigned a unique serial number during manufacture. Each button on the unit also has a distinct "loop" number that you must program into the control panel during installation. Assign each button to an individual zone and designate the Input Type as "BR" (Button Type RF). When you are prompted for the serial number, either press and release twice the button you are programming, or enter it manually through the keypad.

The 5804E is a compact, 4-button portable wireless transmitter intended for use only with wireless alarm systems that support 5800 Series receivers. Each button on the transmitter may be programmed for any zone response, but is typically used for arming, disarming, panic, and relay activation. By pressing two keys in unison a panic alarm signal will be sent. Each button's response is assigned when programming the transmitter at the control panel. The 5804E is powered by two replaceable lithium batteries designed to provide long life.

Product Features:
  • Dimensions: 2.25" H x 1.5" W x 0.5" D (57mm x 38mm x 12.7mm)
  • Operating Temperature: -10°F to 120°F (-12°C to 149°C) Indoor use only
  • Battery: 3V, 210mAh, Maxwell CR2025, Varta CR2025, Duracell DL2025 coin cell lithium
  • Frequency: 345MHz
  • One-button security system arming/disarming (no alarm codes to remember)
  • Remote operation of appliances lights, and garage doors
  • Four completely programmable buttons
  • Recessed keys
  • User replaceable, long-life lithium batteries
  • Backed by Honeywell's 2-year limited manufacturer's warranty
  • Compatible with Honeywell 5800-Series wireless products

Honeywell 5804E Compatible:


• LYNXR-IFR
• L5100-SIA
• L7000
• L5200
• 6152RF
• 6162RF
• 5800
• L5210
• LYRIC CONTROLLER
• L5200-CN
• L7000-CN
• L7000LA
• L5210-CN
• L5210LA
• LYRIC CONTROLLER CANADA
• L5100
• FA270RF
• FA570RF
• RGDRENSIA
• READYGD-R2
• READYGD-REN
• READYGD-RI
• READYGD3000
• READYGD5000
• FA260RF
• READYGD5100
• READYGD5200
• READYGD7000
• 6150RF
• 5843
• 6150RFFR
• 5800RP
• 5800TM
• 5881ENH
• 5881ENHC
• 5881ENL
• 5881ENM
• 6160RF
• 5883H
• L3000-SP
• L5000
• L5000-CN
• L5000-SIA
• L3000
• L3000-CN
• L3000-FR
• L3000-SIA
• LYNXR-2
• LYNXR-2CN
• LYNXR-2FR
• LYNXR-2SIA
• LYNXR-EN
• LYNXR-ENSIA
• LYNXR-I
• LYNXR-ISIA
• LYNXR-ISP
