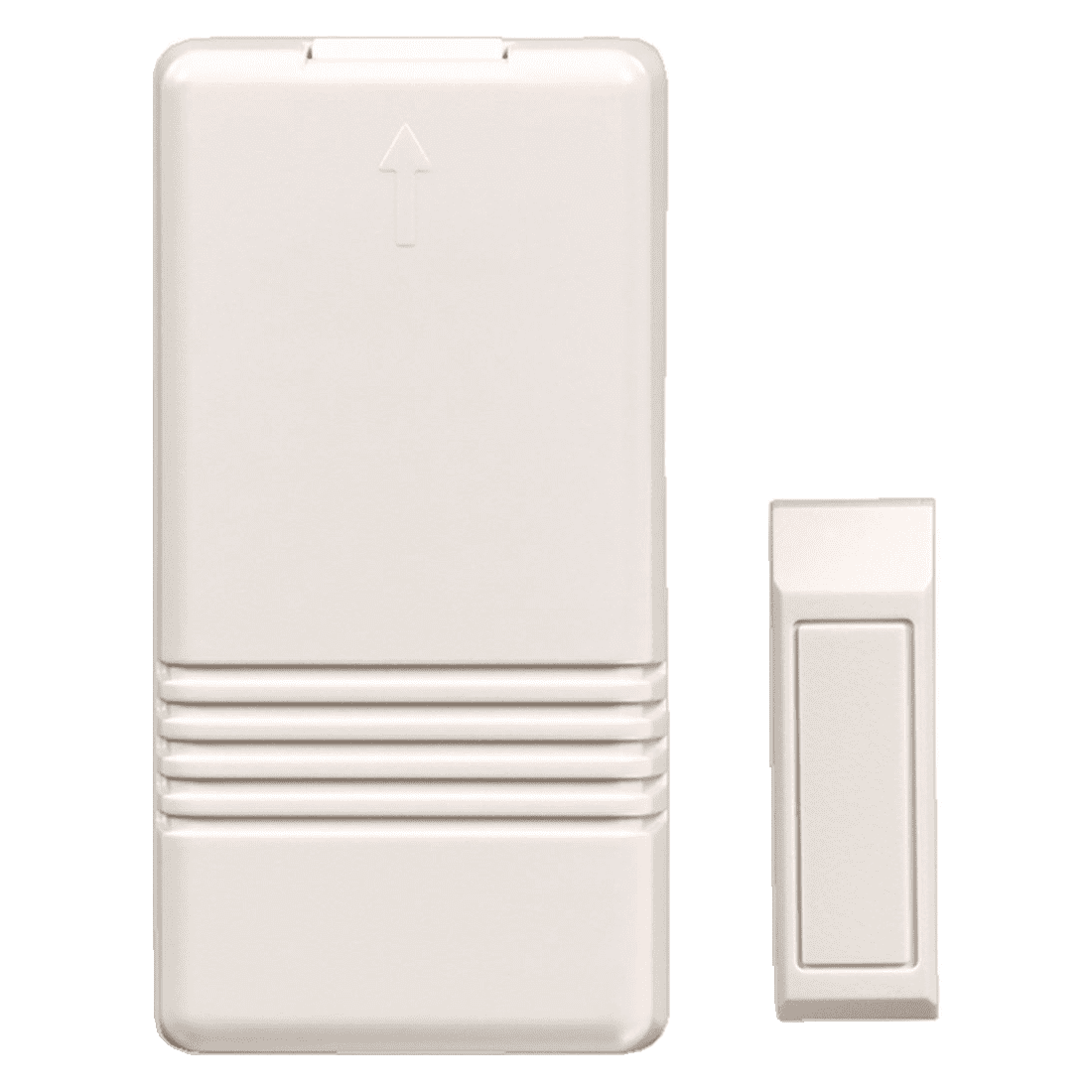

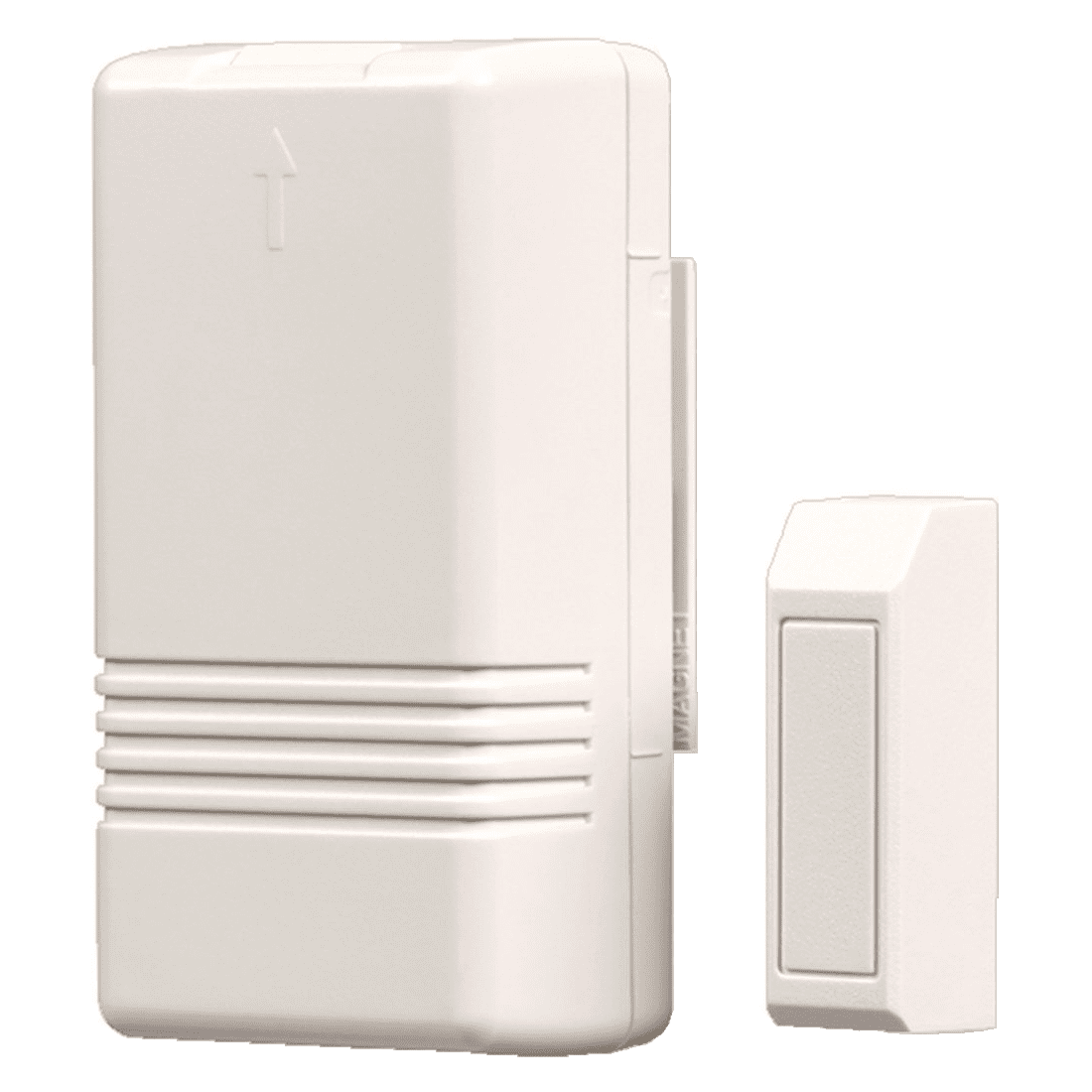

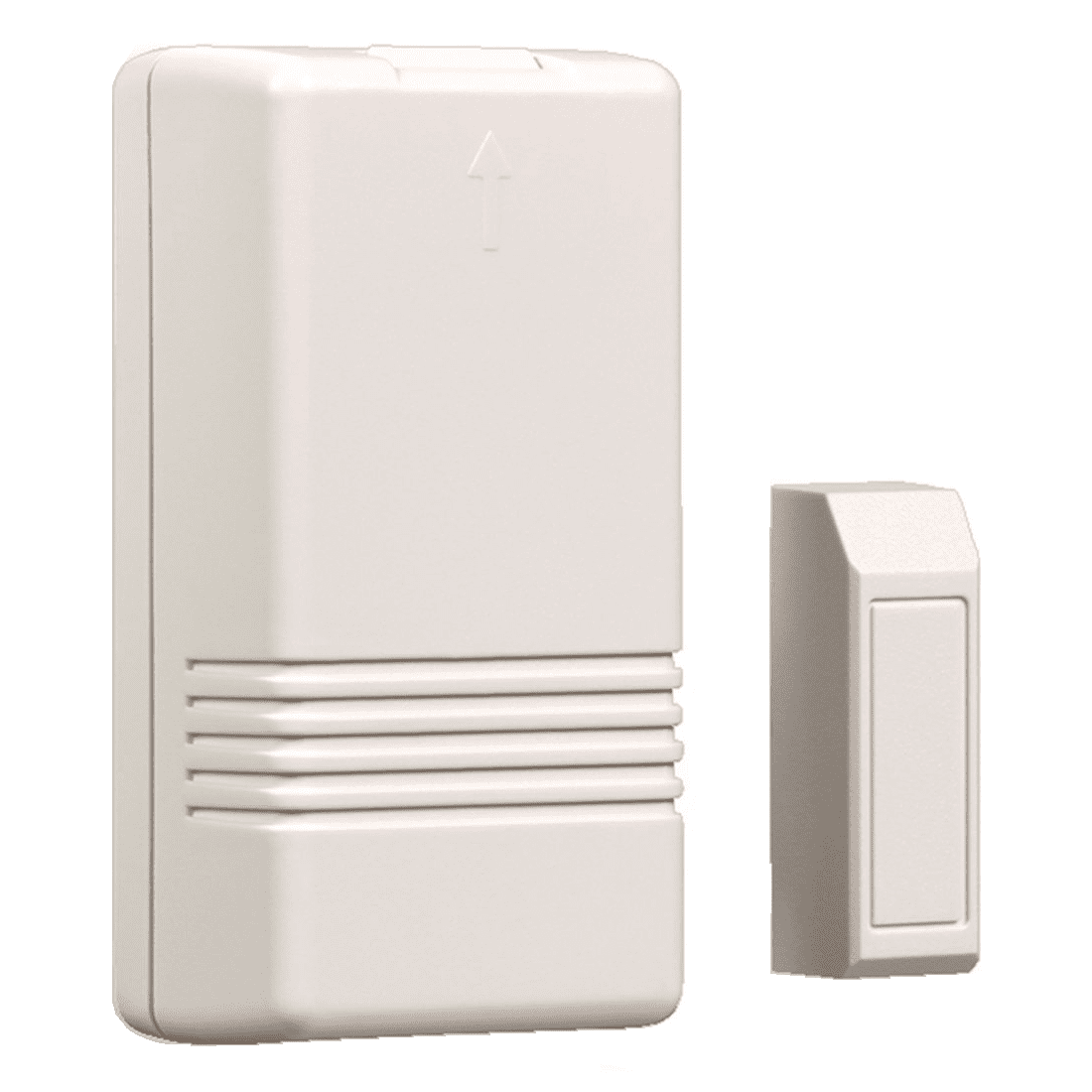

5819S - Resideo Honeywell Home Wireless Combination Door/Window Alarm Contact and Shock Sensor
Honeywell 5819S Product Description:
The Honeywell 5819S is a combination magnetic wireless door/window alarm contact and shock sensor. Experience two layers of protection in one compact device with the 5819S sensor installed in your home or business. This dual-purpose sensor delivers advanced security by combining a magnetic contact for open/close detection and a built-in shock sensor for detecting forcible entry attempts - all in a single, space-saving unit. Designed to provide more protection at every point, the 5819S enhances intrusion detection while minimizing installation time and equipment costs.
The 5819S offers installation flexibility and smart configuration options. Installers can choose to program the contact and shock sensor as separate zones or combine them into a single zone using the built-in switch - ideal for larger systems requiring streamlined zone management. Its omni-directional shock detection ensures full sensitivity across any mounting position, while four adjustable sensitivity levels make it easy to fine-tune performance based on the environment.
At 40% smaller than previous Honeywell models, the 5819S features a sleek, modern design available in white or brown, blending seamlessly with any décor. LED feedback assists with precise shock sensor calibration during installation, simplifying setup for professional installers.
With its combination of versatile design, robust protection, and easy installation, the Honeywell Home 5819S is the perfect solution for securing doors, windows, and other vulnerable entry points - offering the peace of mind and reliability trusted by professionals worldwide.
Product Features:
- Two-in-One Protection - Combines both magnetic contact and shock sensing technology in a single compact unit, providing detection of door/window openings and forcible entry attempts.
- Dual Zone Configuration - Allows installer flexibility: configure the contact and shock sensor as independent alarm zones or combine them into one, ideal for larger systems with many protection points.
- Compact, Modern Design - Considerably smaller than previous Honeywell models for a discreet installation that blends seamlessly into any home or business décor.
- Multiple Sensitivity Levels - Choose from four adjustable shock sensitivity settings for customized protection based on door/window type or environmental conditions.
- Omni-Directional Shock Detection - Offers maximum mounting flexibility by detecting impacts from any direction, regardless of sensor orientation.
- LED Calibration Feedback - Built-in LED indicator assists during setup, providing real-time feedback for accurate shock sensor calibration.
- Wireless Installation - Simplifies setup with reliable Honeywell 5800 Series wireless communication, eliminating the need for wiring or drilling.
- Extended Battery Life - Energy-efficient design provides long-term reliability and reduces maintenance frequency.
- Trusted Honeywell Home Quality - Built to deliver consistent, professional-grade performance and long-term durability.
- Honeywell 2-Year Limited Manfacturer's Warranty -Backed by a trusted warranty for lasting peace of mind and product reliability.
Honeywell 5819S Product Specifications:
Physical
- Product Type: Wireless combination magnetic contact + shock sensor
- Dimensions: 3.06" H x 1.56" W x 1.19" D (78 mm x 40 mm x 30 mm)
- Weight: 0.1 lbs without battery; entire package 0.19 lbs
- Operating Temperature Range: 32°F to 120°F (0°C to 49°C)
- Storage Temperature Range: -4°F to 140°F (-20°C to 60°C)
- Relative Humidity: Up to 95% non-condensing
- Case Color: White
- Mounting: Surface mount with adhesive tape and mounting hardware included: Magnet also included.
Electrical
- Voltage: 3 volts DC
- Number of Batteries: 1
- Battery Type: CR-123A lithium
- Battery Manufacturer: Duracell® or Panasonic™ only
- Includes: Auxillary terminals
Technology
- Frequency: 345 MHz (5800 Series compatible)
- Coverage Area: Approx. 10-12 ft total radius (5-6 ft radius) depending on mounting surface
- Protection Features: Magnetic contact for open/close + Omni-directional shock detection
- Sensitivity Options: Four shock sensitivity settings (Most Sensitive, High, Medium, Low)
- Approved for Use With: Honeywell 5800 Series wireless systems (and other compatible 345 MHz systems)
Listings
- 5819S is cETLus Listed to UL 639 Standard for Intrusion Detection Units
- ULC S306 Intrusion Detection Devices
- UL 634 Guide for the Investigation of Connectors and Switches for Use with Burglar Alarm Systems
Honeywell 5819S Product Documents:
- Data Sheet - Honeywell Wireless Combination Door/Window Alarm Contact and Shock Sensor (5819S)
- Installation Instructions - Honeywell Wireless Combination Door/Window Alarm Contact and Shock Sensor (5819S)
- Box Installation Guide - Honeywell Wireless Combination Door/Window Alarm Contact and Shock Sensor (5819S)
Honeywell 5819S Product Compatibility:
- Honeywell 5800 Series wireless systems
- Other compatible 345 MHz systems
