ADC-W115C - Alarm.com Wi-Fi Smart Chime and Access Point (for ADC-VDB780B Battery-Powered Video Doorbell)
Please Note: The Alarm.com ADC-W115C wireless Wi-Fi smart chime and access point has been discontinued and replaced by the ADC-W114C model number for chime-only installs. For connection directly to the customer's network without a hub or access point, the next-generation battery doorbell camera (ADC-VDB781B) is the recommended replacement.

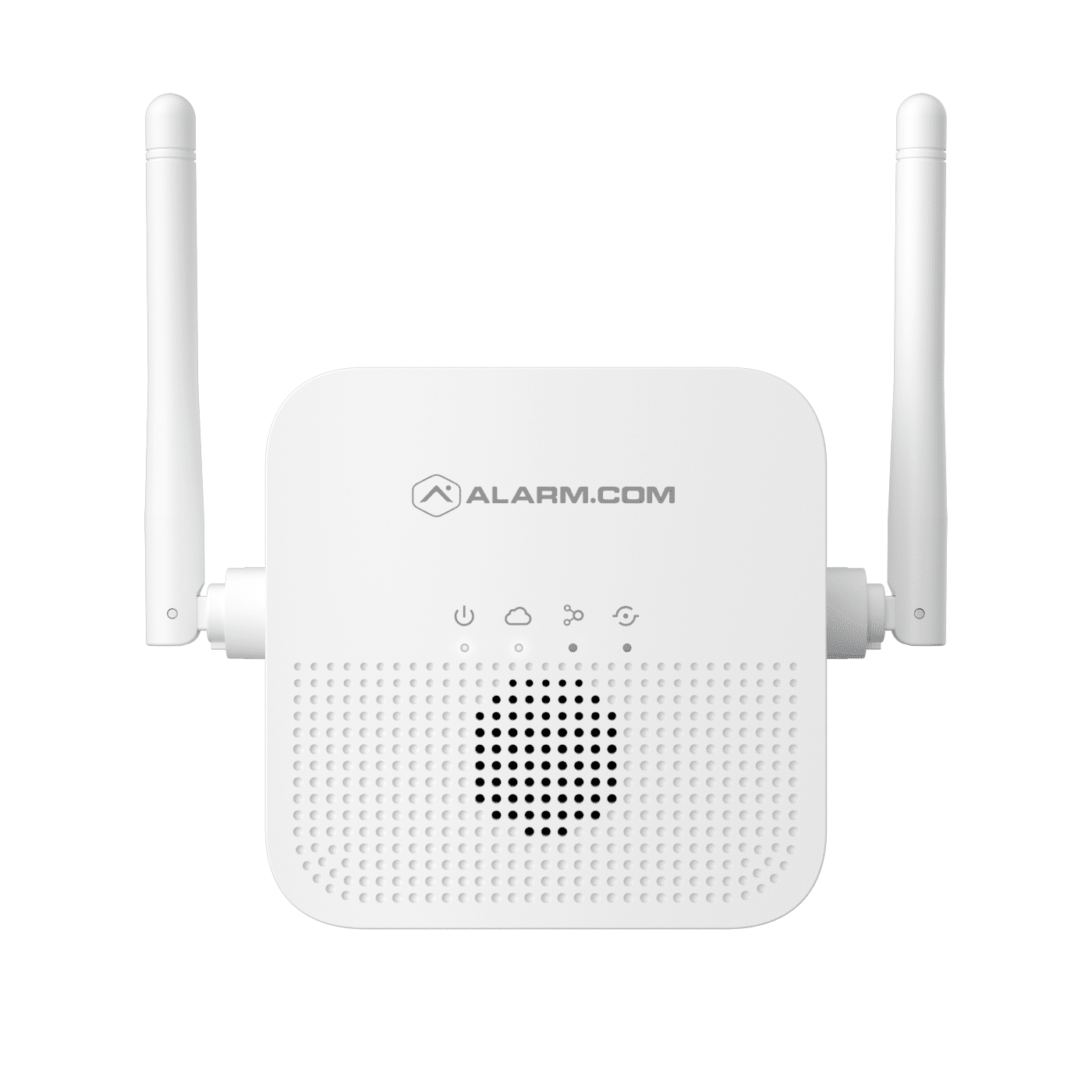

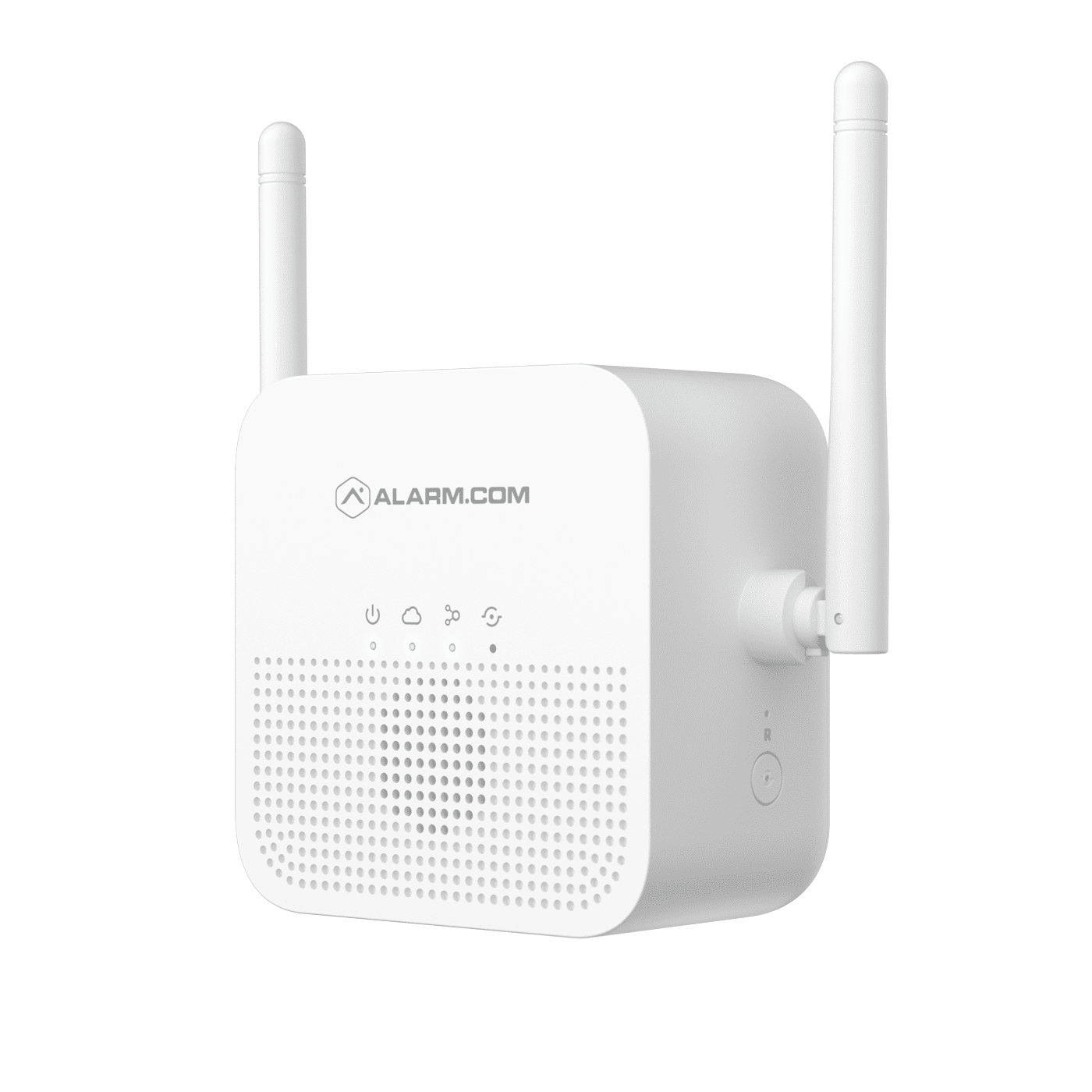

Alarm.com ADC-W115C Product Description:

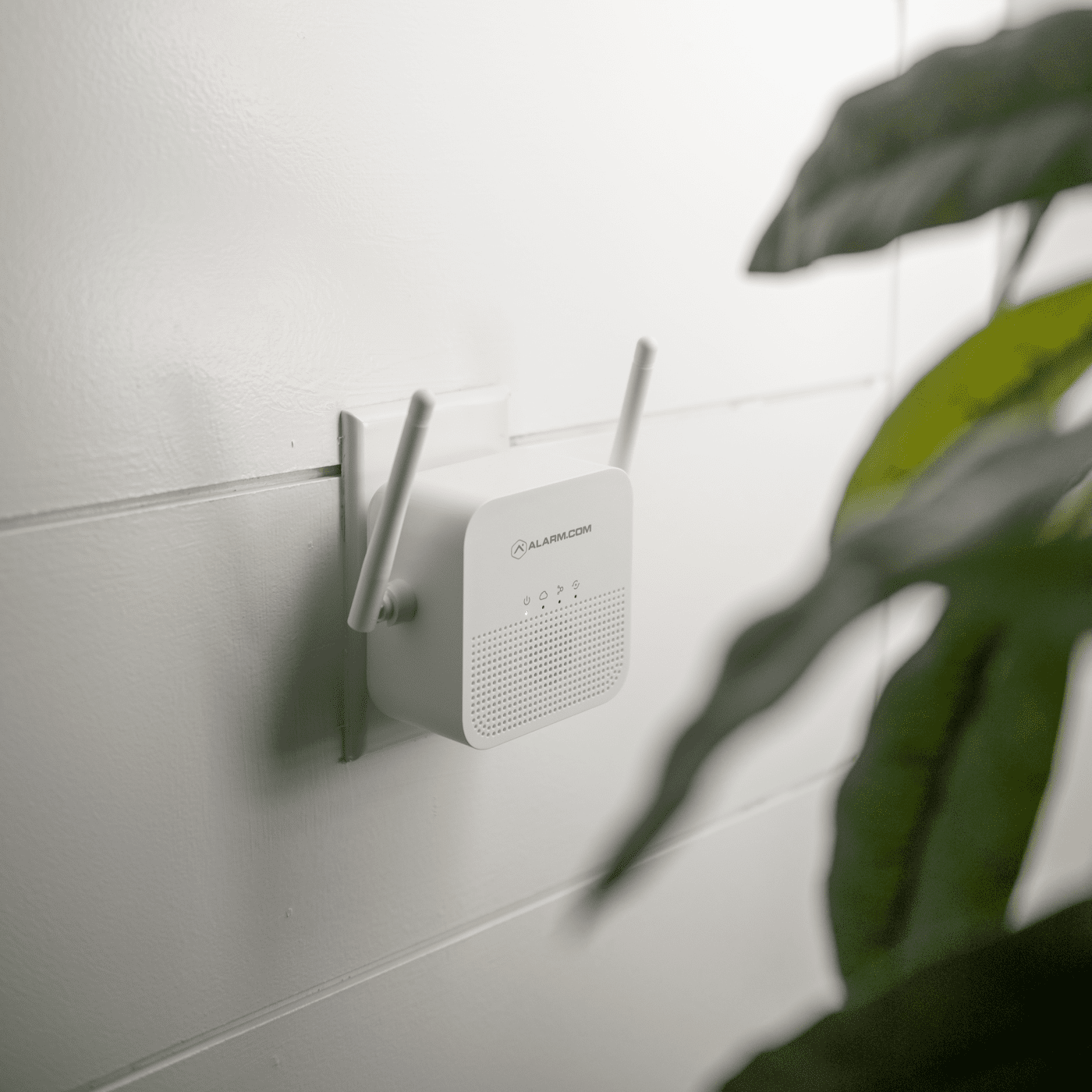

The Alarm.com ADC-W115C Smart Chime and WiFi Access Point is designed for use with the ADC-VDB780B battery-powered wireless video doorbell camera. Designed to work seamlessly with the Alarm.com platform, the ADC-W115C serves as a robust Wi-Fi extender and customizable wireless doorbell chime. Add the Alarm.com Smart Chime to an account when an in-home chime is not a feasible option during a doorbell camera installation. Simply plug the ADC-W115C into a wall outlet, pair with the existing router, add a doorbell camera, and enjoy boosted network signals that provide instantaneous chime notifications.
Product Features:
- Wireless doorbell chime
- Wi-Fi extender (2.4 GHz)
- Adjustable chime volume
- Customizable tones
- Simple, plug-in installation
- Remote management and troubleshooting
- Works with the ADC-VDB780B Video Doorbell
Please Note: The ADC-W115C can only be used as a Wi-Fi extender for Alarm.com video devices.
Alarm.com ADC-W115C Product Specifications:
- Dimensions with Antennas (H x W x D): 5.0 x 1.0 x 2.1" (12.7 x 13.0 x 5.4 cm)
- Dimensions without Antennas (H x W x D): 3.3 x 3.3 x 2.1" (8.5 x 8.5 x 5.4 cm)
- WiFi Connection: 802.11 b/g/n, 2.4 GHz
- WiFi Security: WPA2
- LED Indicators: 4
- Buttons: WPS, Reset
- Antennas: 2
- WiFi Chime: 1.5 W speaker, 77 dB
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Operating humidity: 10% to 90% condensing RH
- Motion sensor: Passive infrared sensor
- Battery pack capacity: 9540mAh nominal capacity
- Charging requirement: 5V/1.5A charger
- Charging time: Up to 7 hours
- Speaker: 1W, 8Ω speaker
- Microphone: Single, omni-directional, analog, >-40dBV/Pa
Alarm.com ADC-W115C Product Documents:
• Data Sheet - Alarm.com Smart Chime (ADC-W115C)
• Installation Guide - Alarm.com Smart Chime (ADC-W115C)
• Enable Video Doorbell Camera Notifications - Alarm.com Smart Chime (ADC-W115C)
• Factory Reset to Default Settings - Alarm.com Smart Chime (ADC-W115C)
• Ping to Verify Proper Communications - Alarm.com Smart Chime (ADC-W115C)
• Test Signal Strength - Alarm.com Smart Chime (ADC-W115C)
• Troubleshoot Not Stay Plugged Into Outlet - Alarm.com Smart Chime (ADC-W115C)
• How Many Can Doorbell Camera Ring at Once - Alarm.com Smart Chime (ADC-W115C)
• How Many Devices Can be Connected - Alarm.com Smart Chime (ADC-W115C)
• How Many on Single Account - Alarm.com Smart Chime (ADC-W115C)
• AP mode IP Address - Alarm.com Smart Chime (ADC-W115C)
