CELL-ANTU - Resideo Honeywell Home Multiband Cellular Antenna (for Lyric LTE, GSM and CDMA Radios)
Honeywell CELL-ANTU Product Description:
The Honeywell CELL-ANTU is a multiband fixed length cellular antenna intended for either LTE, 3G or CDMA. The CELL-ANTU is a durable, indoor/outdoor, low-profile antenna designed for integration with Honeywell Lyric cellular communication devices. The CELL-ANT3DB includes a CELL-EXT coax cable adapter for easy assembly. The CELL-ANTU is only intended for use with the Honeywell Lyric Controller cellular alarm communicators.
In most cases, the CELL-ANTU antenna will provide sufficient quality of signal (QOS) for a successful installation. The CELL-ANTU should be used in installations where moving the antenna to a higher point will provide a better quality of signal. FOt the best QOS, maintain at least 12 inches of clearance between the communication module and steel I-beams, HVAC ducts, metal studs, steel roofs, exterior walls with metalized insulation or aluminum siding and other large metal objects.
The CELL-ANTU is waterproof, and can be installed indoors or outdoors. The antenna should be mounted on a glass, plastic, drywall, masonry or wood surface vertically, while maintaining 12 inches of clearance from large metal objects. Do not install on a metal surface.
Product Features:
- Designed for Indoor and Outdoor Use
- Cable Length of 3 meters (9.84 feet)
- TS9 straight SMA Connector Type
- Backed by Honeywell's 2-year limited manufacturer's warranty
Honeywell CELL-ANTU Product Documents:
• Honeywell CELL-ANTU Multiband Cellular Antenna - Data Sheet
• Honeywell CELL-ANTU Multiband Cellular Antenna - Installation and Setup Guide
Honeywell CELL-ANTU Product Specifications:
- Type: Multiband, dipole
- Bands: 700, 850, 900, 1800, 1900 and 2100 MHz
- Polarization: Linear
- Antenna Gain (Peak): 1 dBi
- Impedance: 50 Ohms
- Input Power (Max.): 5W
- VSWR: <2: 1
- Dimensions: 106 x 15 x 6.7mm
- Weight: 40g
- Cover: PVC black
- Cable Type: RG-174
- Cable Length: 3m
- Environmental: Waterproof IP67
- Operating Temperature: -40°C to 85°C
- Connector Type: TS9 straight SMA

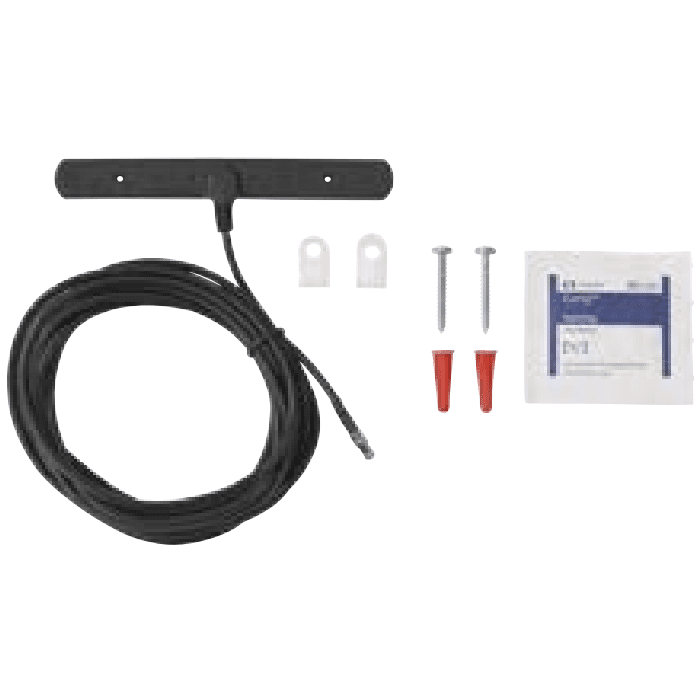

Honeywell CELL-ANTU Product Includes:
- Multi-band cellular antenna with double sided adhesive
- Integrated coax cable with TS9 connector
- Antenna mounting hardware pack: 2 cable clamps with screws and anchors
Honeywell CELL-ANTU Product Compatibility:
• Lyric-3G
• Lyric-CDMA
• Lyric-3GC
• LYRICLTE-A
• LYRICLTE-C
• LYRICLTE-V
