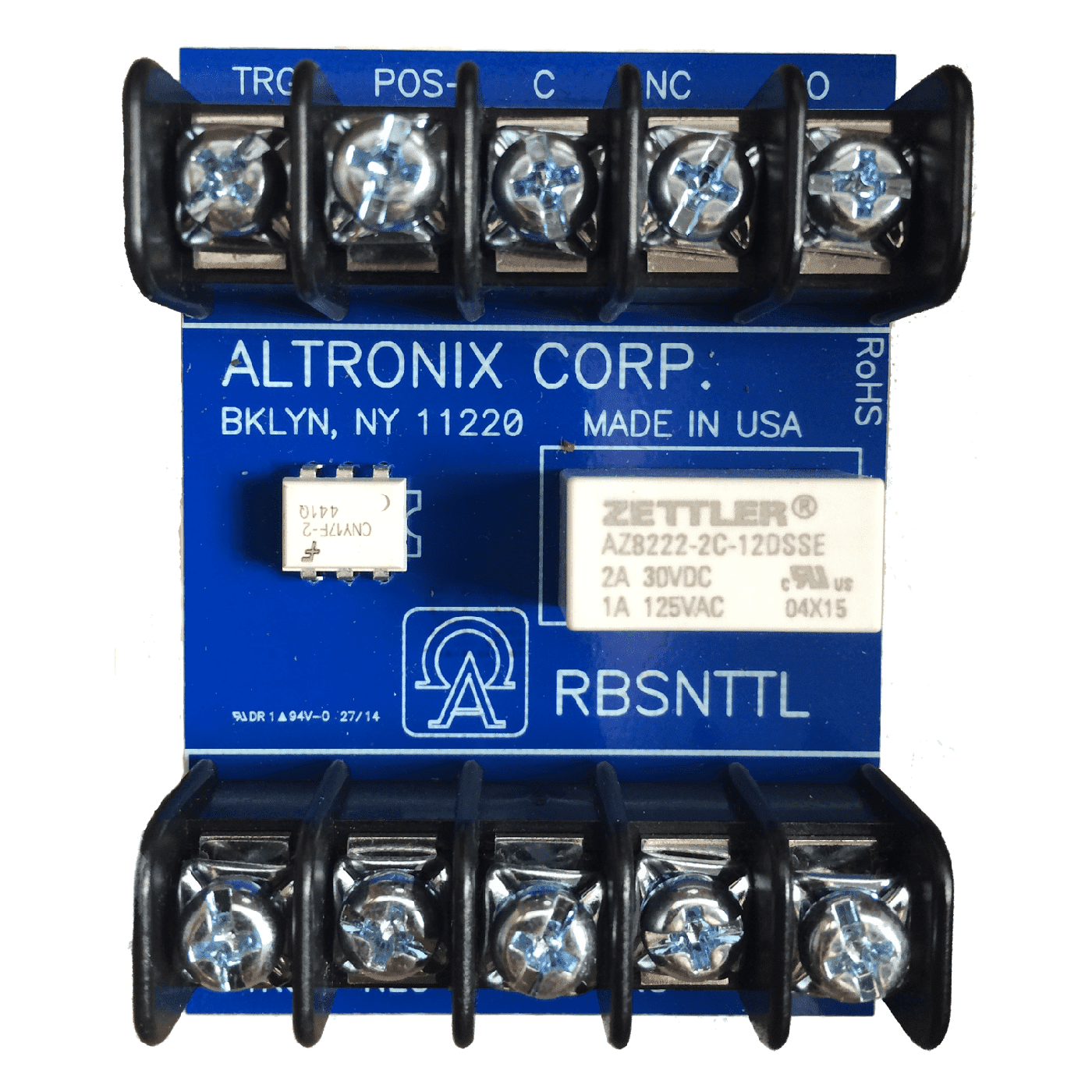

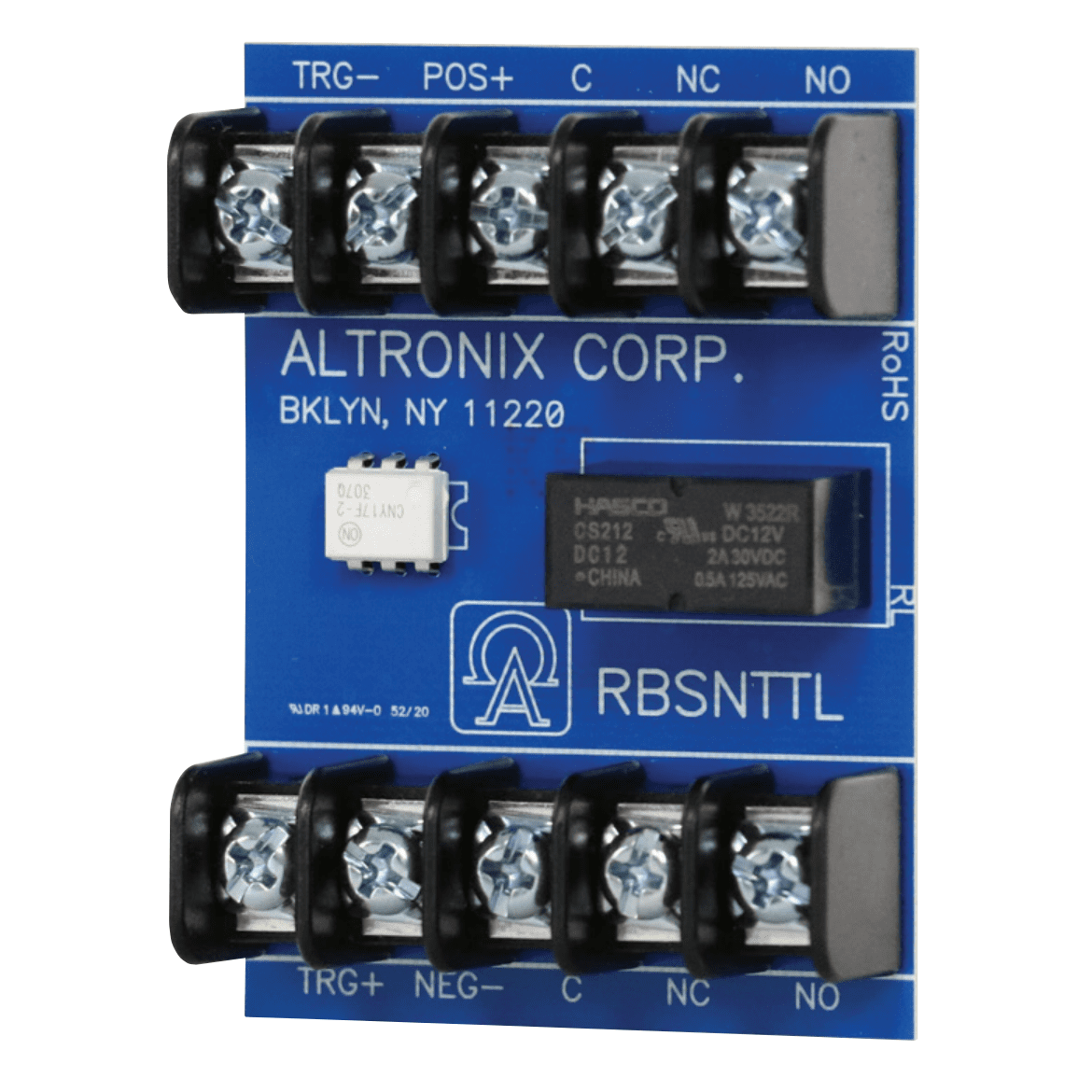

RBSNTTL - Altronix Relay Module, 12-24VDC @ 1A/2A
Altronix RBSNTTL Product Description:
The Altronix RBSNTTL Ultra-Sensitive Relay Module is engineered to meet the demands of both industrial and delicate switching applications. This ultra-sensitive relay is designed for continuous duty, ensuring that it can handle the rigors of constant operation without compromising performance. Its robust construction makes it a reliable choice for a wide range of applications, from heavy-duty industrial tasks to more sensitive operations that require precision and care.
Operating at 12/24VDC, the RBSNTTL features DPDT (Double Pole Double Throw) contacts, providing versatility and adaptability in various settings. It is capable of handling 1A at 120VAC or 2A at 28VDC, making it suitable for a broad spectrum of electrical systems. Whether you're looking for a relay to manage high-power tasks or need a sensitive solution for more delicate operations, the Altronix RBSNTTL stands out as a dependable and efficient choice. Its rugged design ensures longevity and reliability, making it an essential component for any switching application.
Product Features:
- Sensitive Relay Module
- 12V DC to 24V DC operation, 3V DC to 24V DC isolated positive or negative trigger input
- 18mA current draw, DPDT contacts rated at 1A/120V AC or 2A/28V DC
Altronix RBSNTTL Product Specifications:
Input Voltage:
- 12VDC to 24VDC selectable operation
- 3VDC to 24VDC 2mA - 16mA isolated trigger
- Current Draw - 45mA
Contact Rating:
- 1 amp/120VAC or 2 amp/28VDC DPDT contacts
Electrical:
- Operating Temperature (ambient) - 13°F to 131°F (25°C to 55°C)
- Storage Temperature (ambient) - 4°F to 158°F (20°C to 70°C)
- Relative Humidity - 85% ± 5%
- System AC input VA requirement - 10.8VA
Mechanical:
- Snap track mountable (Altronix model # ST1)
- Dimensions (W x L x H) - 2" x 2.7" x 1.1" (50.8mm x 68.58mm x 27.94mm)
- Product Weight (approx.) - 0.1 lbs. (0.05 kg)
- Shipping Weight (approx.) - 0.15 lbs. (0.07 kg)
