RE607 - Alula Wireless Encypted Outdoor Door/Window Alarm Contact (for Connect+ Control Panel)
Alula RE607 Product Description:

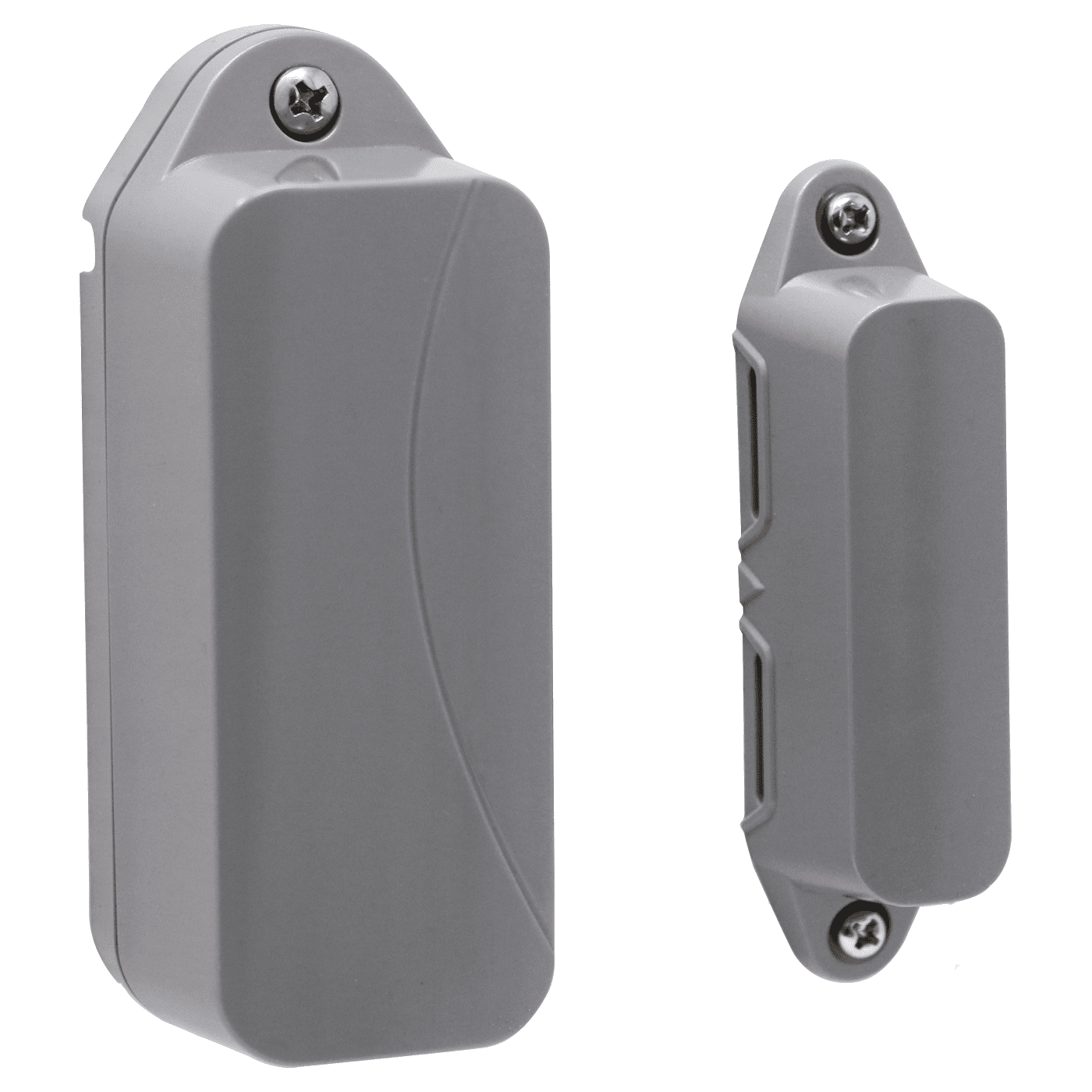

The Alula RE622 is a Connect+ encrypted wireless outdoor door and window sensor designed for the Alula Connect+ security system panel. The RE622 oudoor door/window sensor is a full-featured security transmitter with industry-leading wireless range and battery life. It is designed to sense the opening and closing of gates, sheds, and other outdoor open/close applications. An alarm signal will be transmitted when the magnet is pulled away from the sensor, or when an external contact is opened.
To install the RE622 begin by first attaching the mounting plate and magnet to a door, window, or fence using screws (provided) or cable ties (not provided). Face of mounting plate marked "Flat Mount" is to be mounted against flat surfaces (e.g. square wood post). Face of mounting plate marked "Pole Mount" is to be mounted against round surfaces (e.g. fence post). Make sure to align the alignment marks on the sensor and magnet when mounting. Finish by latching the sensor to the mounting plate and tightening the cover-securing screw to secure the sensor in place.
External contacts can be installed by routing the wires through the back of the enclosure a maximum wirel length of 7.5 feet. A thinned area in the RE622 enclosure must be punched out with a screwdriver to allow the wires through. After routing and connecting the wires, reseal the hole with silicone caulk. Do not use end-of-line resistors. Wire contacts to one or both outside terminals using the center terminal as a shared common.
Product Features:
- Industry-leading wireless range and battery life
- Wide magnetic gap distance
- Two built-in external contact zones
- Secure encrypted wireless transmissions
- IP67 waterproof enclosure rating
- 5 year warranty
Alula RE607 Product Specifications:
- Dimensions: 3.3 x 1.3 x 2.8 inches (8.4 x 3.3 x 7.1 cm)
- Weight with Battery: 5.7 ounces (161.6 grams)
- Mounting Fastener: Four 1 inch stainless steel screws (provided)
- Removal Tamper Fastener: One 1-1/4 inch stainless steel screw with rubber washer (provided)
- Operating Temperature: -40 to 158°F (-40 to 70°C)
- Maximum Humidity: 100% relative humidity (RH)
- Ingress Protection Rating: IP67
- Frequency: 433.92 MHz
- Replacement Battery: One Panasonic® CR123A Lithium Battery
- Nominal Battery Life: 10 years
- Battery Voltage: 3.0 VDC (Nominal), 2.2VDC (Low
- Current Draw: 20 mA (Maximum), 0.6 uA (Quiescent)
- Transmitted Indications: Cover Tamper, Removal Tamper, Low Battery, Supervision
- Max Wire Length on External Contacts: 7.5 feet
- Certification: FCC, IC
Alula RE607 Product Documents:
• Installation/Operation Guide for Alula RE607 Wireless Connect+ Outdoor Door/Window Alarm Contact
Alula RE607 Magnet Gap:
Non-Ferromagnetic Surface (e.g. Wood, Vinyl, etc.)
- Nominal Mounting Distance: 2.70 inches (6.86 cm)
- X Axis - Make: 2.80 inches (7.11 cm)
- Break: 2.85 inches (7.24 cm)
- Y Axis - Make: 3.50 inches (8.89 cm)
- Break: 3.55 inches (9.02 cm)
- Z Axis - Make: 3.27 inches (8.31 cm)
- Break: 3.33 inches (8.46 cm)
Ferromagnetic Surface (e.g. Iron, Nickel, etc.)
- Nominal Mounting Distance: 1.90 inches (4.83 cm)
- X Axis - Make: 2.00 inches (5.08 cm)
- Break: 2.05 inches (5.21 cm)
- Y Axis - Make: 2.50 inches (6.35 cm)
- Break: 3.00 inches (7.62 cm)
- Z Axis - Make: 2.32 inches (5.89 cm)
- Break: 2.37 inches (6.02 cm)
Sensitivity can be adjusted by moving the magnet in the closed position farther away from the sensor.
