5800MICRA - Resideo Honeywell Home Wireless Recessed Door/Window Alarm Contact (for 345 MHz Control Panels)
Honeywell 5800MICRA Product Description:

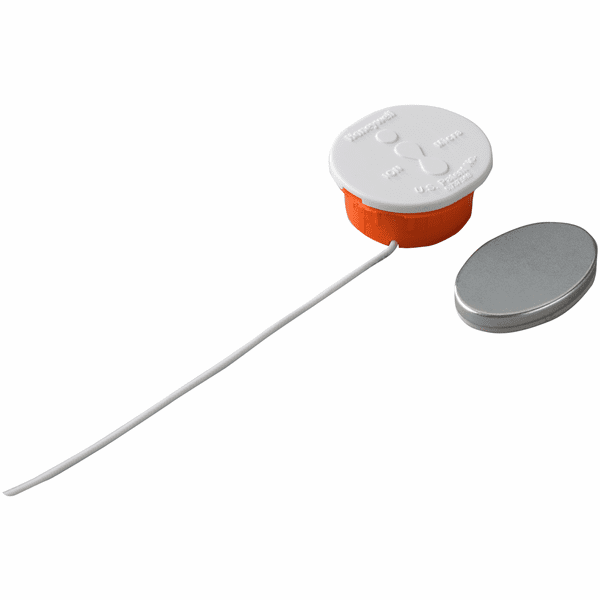

The Honeywell 5800MICRA is a wireless recessed transmitter with a reed switch magnetic contact transmitter that allows the transmitter to be concealed from view when installed in a window or door. The 5800MICRA is so small that it virtually disappears once installed. It is intended for use only with Honeywell control panels that support Honeywell 5800-Series devices. With features including the cleanest, fastest installations, a battery life up to 10 years and exceptional range, you'll want to use the 5800MICRA on every window where aesthetics and discretion are critical.
Each 5800MICRA has its own unique serial number permanently assigned during manufacturing. The control panel is used to "enroll" the transmitter's ID during installation of the alarm system. The zones input type should be as "RF" (i.e. Supervised RF) Type. The 5800Micra transmitter is powered by a long-life lithium battery that is easily replaceable when a low battery is indicated by the control panel.
The 5800MICRA will require a 3/4" diameter hole (using a 3/4" Forstner bit) drilled into the edge of the window frame no more than 11/32" deep. Do not use on metal frame windows or doors. Make sure that no more than 1/2" gap will be present between the faces of the transmitter and magnet cases when they are installed and set. When installed, an alarm signal must be obtained before a clear space of 2" is reached as the window is opened.
Product Features:
- Small-sized recessed transmitter
- Bult-in reed switch and tamper
- Magnet included
- Single-zone transmitter
- Includes rare earth magnet
- Eliminates concerns of voiding window manufacturers' warranties
- Up to 10-year battery life
- Transmits supervisory, tamper and low battery messages
- All Vinyl Window Types, Wood Casement, Awning, Double-Hung and Access
- Case tamper protection
- Wireless 345MHz transmitter frequency
- Compatible with Honeywell 5800-Series wireless receivers and transceivers
- Backed by Honeywell's 2-year limited manufacturer's warranty
Honeywell 5800MICRA Product Documents:
• Data Sheet for Honeywell Recessed Door/Window Alarm Contact (5800MICRA)
• Installation Instructions for Honeywell Recessed Door/Window Alarm Contact (5800MICRA)
• Quick Start Label for Honeywell Recessed Door/Window Alarm Contact (5800MICRA)
Honeywell 5800MICRA Product Specifications:
- Dimension (Dowel Package): 3/4" diameter, 1/3" long
- Dimension (Dowel Lid): 0.85" diameter, 0.06" thick
- Fits Cavity Depth: 0.33" depth (11/32")
- Wire Antenna: 8" x 1/8" flexible antenna (24 gauge)
- Operating Temperature: 10°F to 120°F (-12°C to 49°C)
- Operating Humidity: Up to 95%, non-condensing
- Battery (included): 3V Lithium Coin battery CR1620
- Frequency: 345MHz
- Case Color: White
- Gap (transmitter to magnet): 0.5" (12.7mm) max
Honeywell 5800MICRA Product Compatibility:
• 5882H
• DESTINY-6100AN
• L5100-SIA
• L7000
• L5200
• 6152RF
• 6162RF
• 5800
• L5210
• LYRIC CONTROLLER
• LYRIC GATEWAY
• L5200-CN
• L7000-CN
• L7000LA
• L5210-CN
• L5210LA
• LYRIC CONTROLLER CANADA
• L5100
• FA245RF
• FA270RF
• FA570RF
• RGDRENSIA
• READYGD-R2
• READYGD-REN
• READYGD-RI
• READYGD3000
• READYGD5000
• READYGUARD-R
• FA260RF
• READYGUARD
• READYGD5100
• READYGD5200
• READYGD7000
• 6150RF
• 6150RFFR
• 5800RP
• 5881ENH
• 5881ENHC
• 5881ENL
• 5881ENM
• 6160RF
• 5881H
• 5881L
• 5881M
• 5883H
• 6128RF
• DESTINY-6100
• L3000-SP
• L5000
• L5000-CN
• L5000-SIA
• L3000
• L3000-CN
• L3000-FR
• L3000-SIA
• LYNXR
• LYNXR-2
• LYNXR-2CN
• LYNXR-2FR
• LYNXR-2SIA
• LYNXR-EN
• LYNXR-ENSIA
• LYNXR-I
• LYNXR-ISIA
• LYNXR-ISP
• XL20
• LYNX
