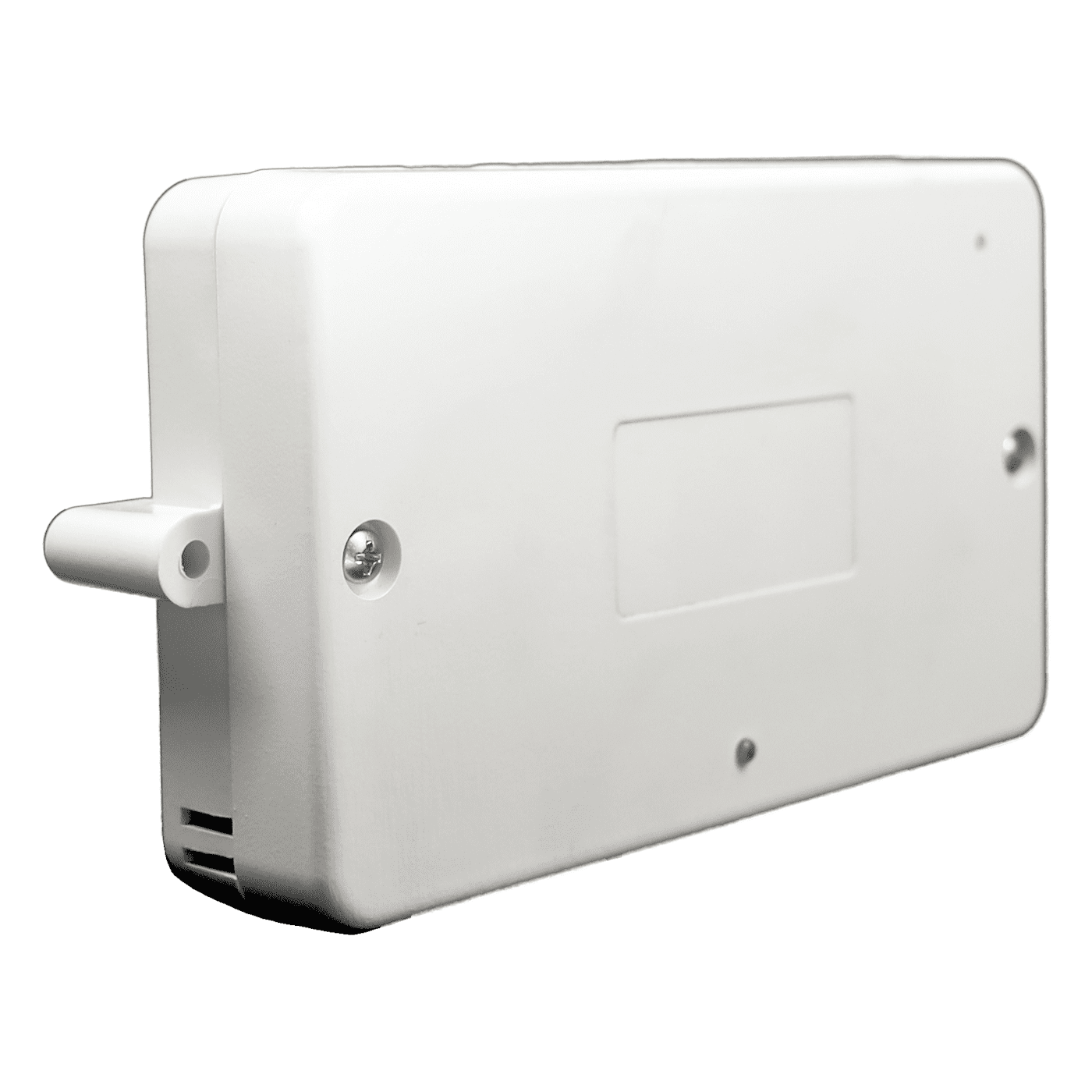

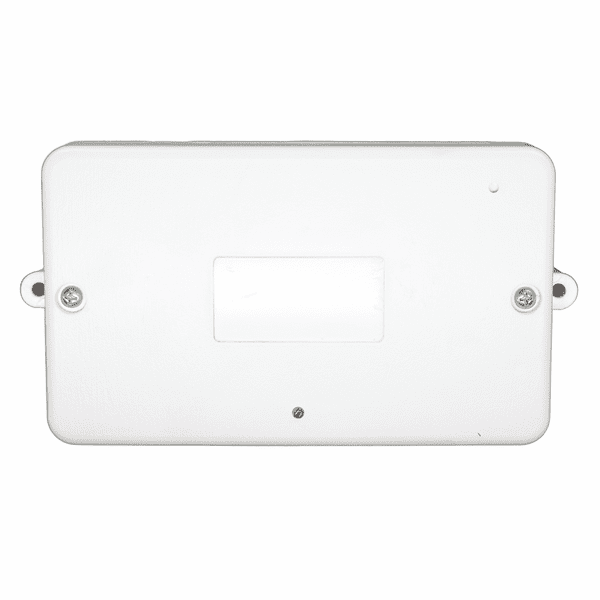

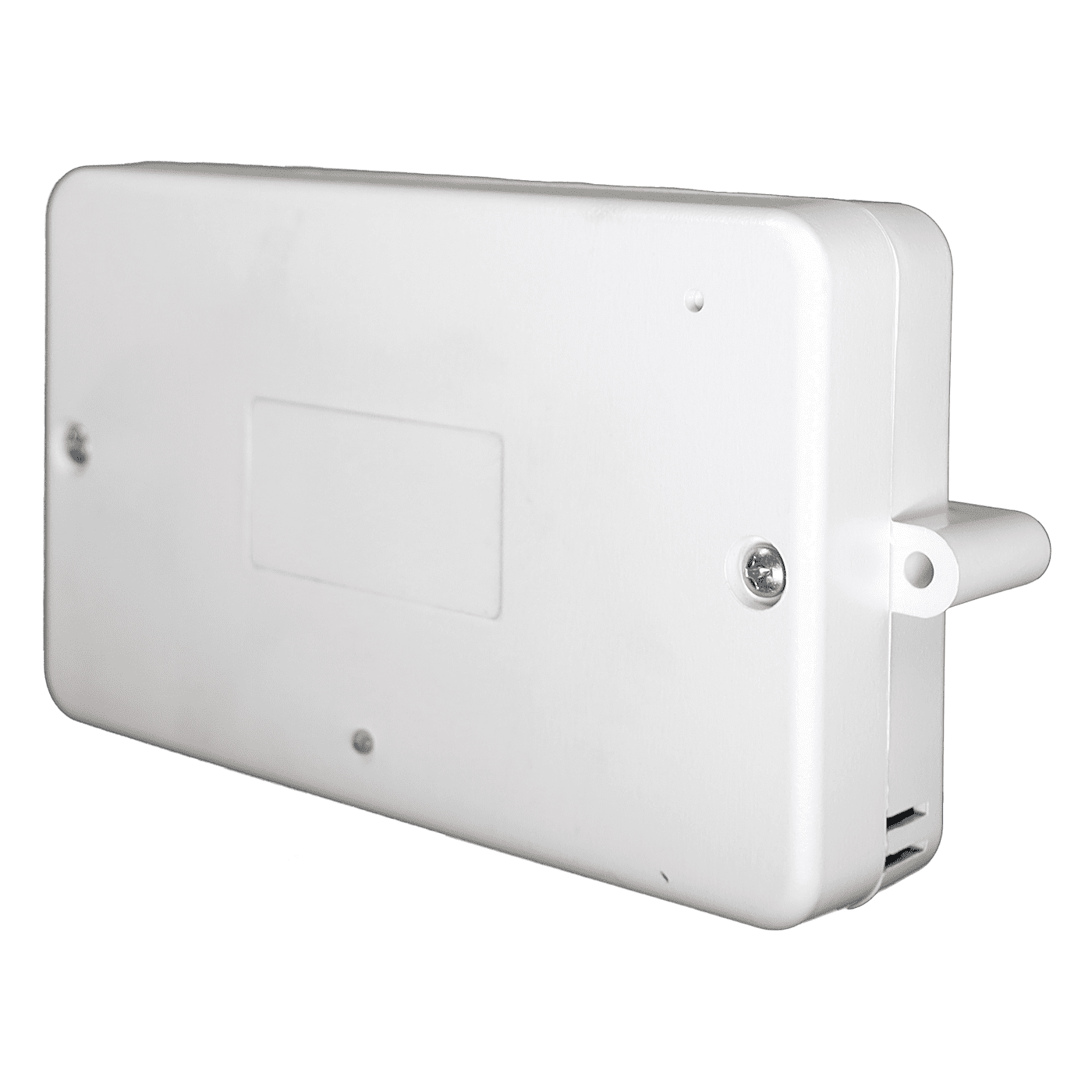

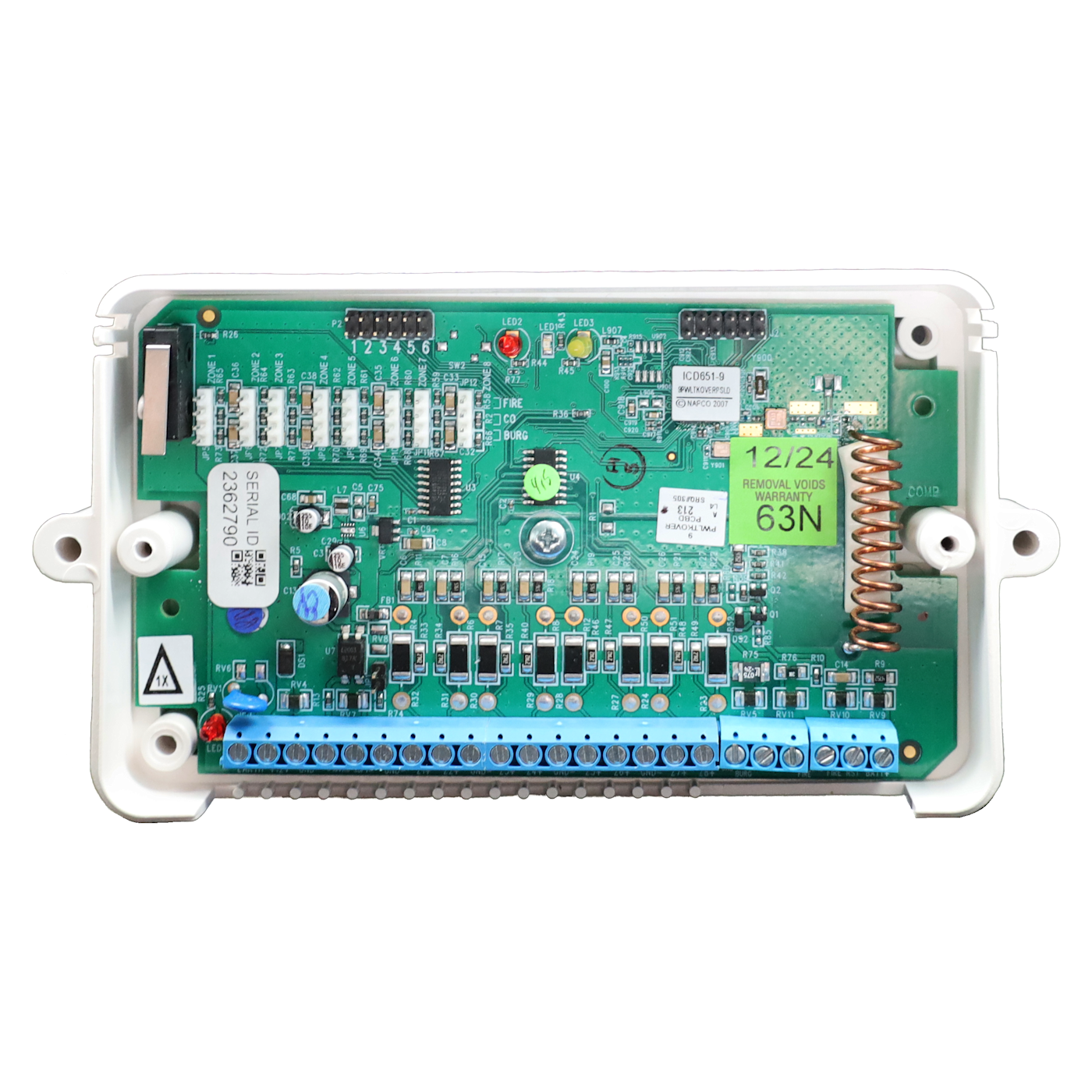

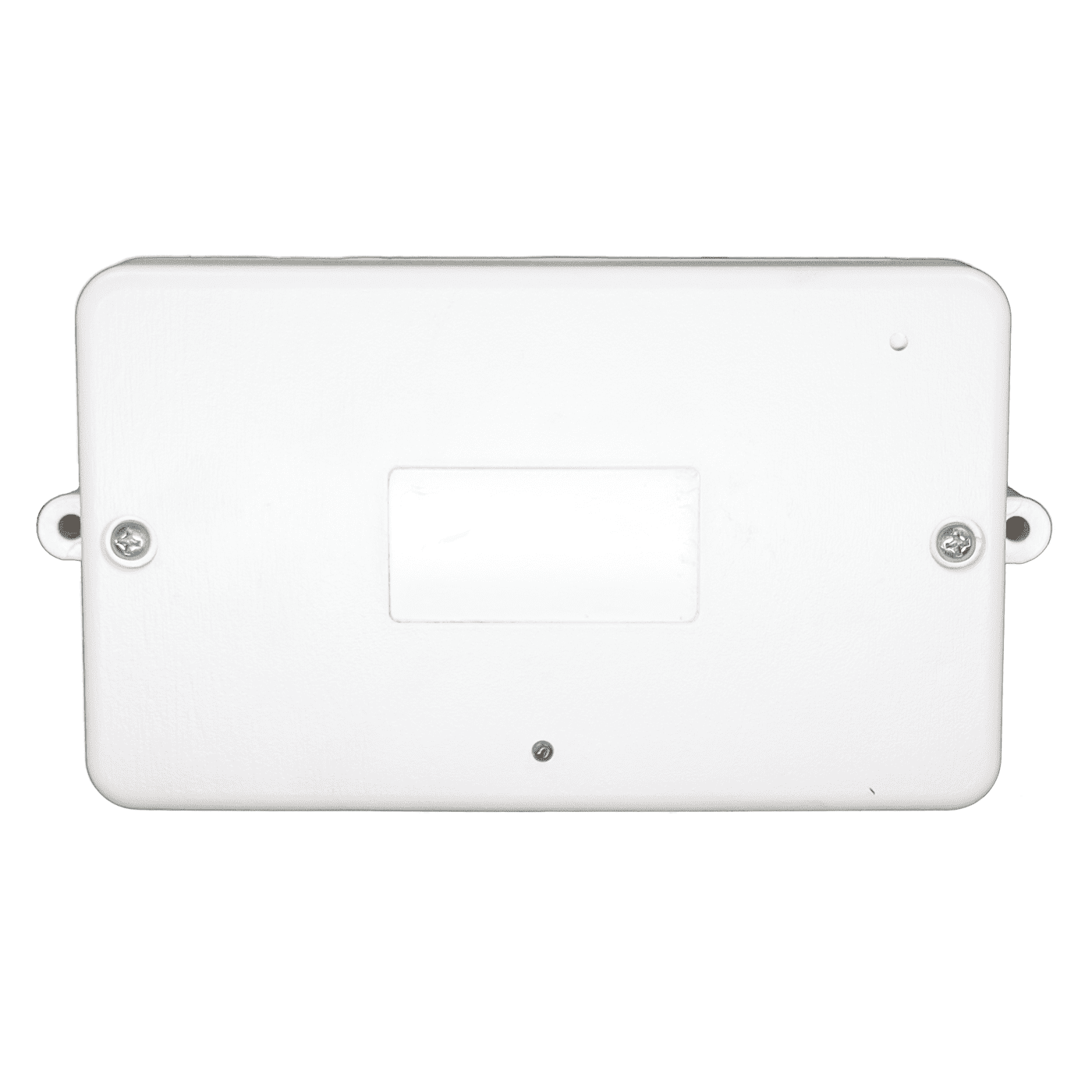

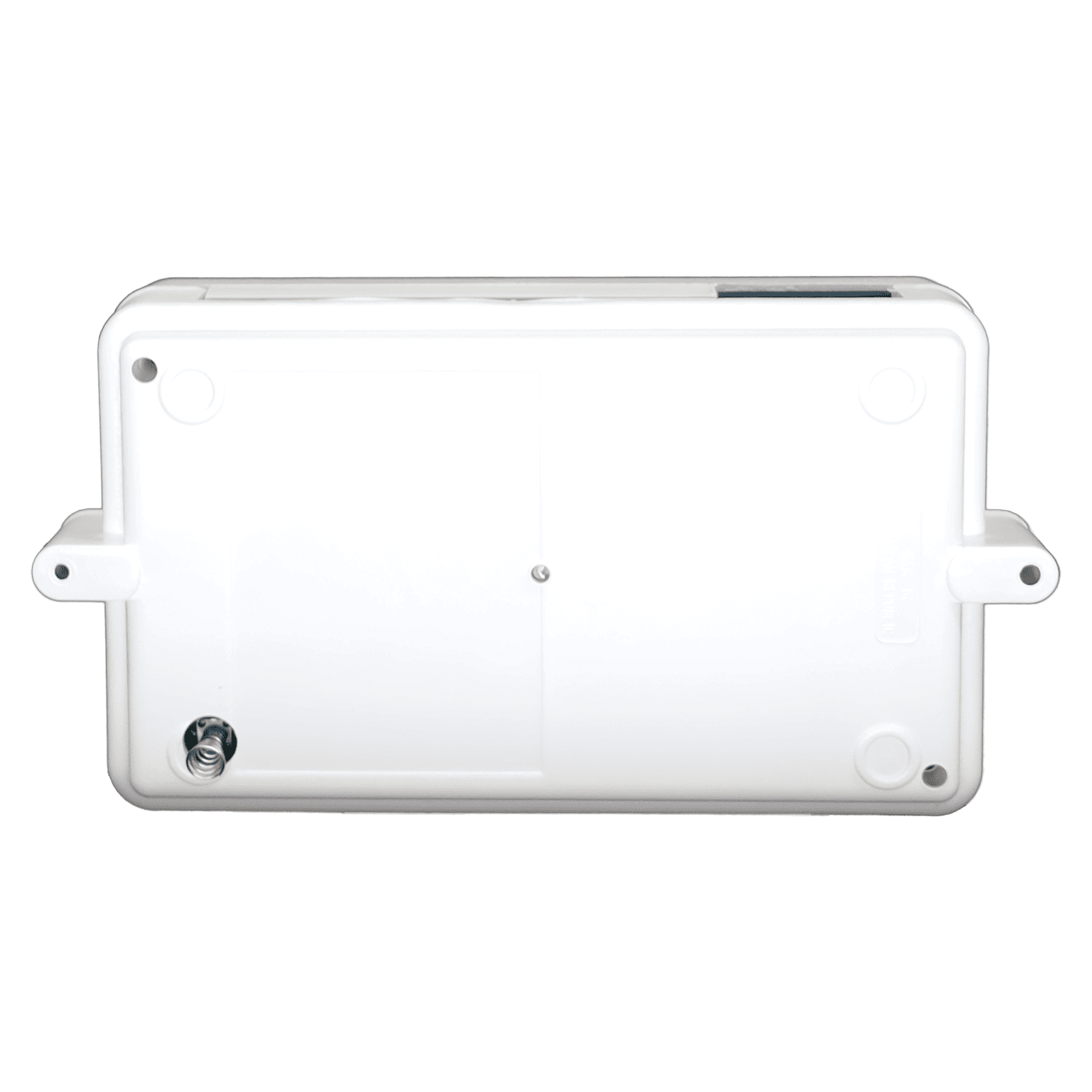

GeoHTW8 - GeoAlarm 8-Zone Hardwired-to-Wireless GeoSeries ® Takeover Module

Item# GEOHTW8

List Price: ~~$134.97~~

Our Price: $89.98

Availability: In Stock

QTY:

Shipping3-5 Business Days

Returns30-Day Return Window

PaymentSecure Transaction

Description
Specifications
Documents
Compatibility

GeoAlarm GeoHTW8 Product Description:

The GeoHTW8 is a 8-zone hardwired-to-wireless GeoSeries® takeover module used to retrofit existing systems hardwired sensors into the GeoAlarm security system. The GeoHTW8 takeover module is ideal for those looking to upgrade their current security setup without the hassle and expense of completely overhauling their existing infrastructure. By utilizing the GeoHTW8, users can convert their traditional hardwired sensors into a modern, wireless system with the advanced features.

One of the standout features of the GeoAlarm GeoHTW8 is its ability to save both time and money during the upgrade process. Instead of replacing all existing sensors, which can be costly and labor-intensive, the GeoHTW8 allows for a straightforward transition to a wireless setup. This not only reduces installation time but also minimizes disruption to the home or business environment. The device is designed to be user-friendly, making it accessible for both professional installers and DIY enthusiasts.

Up to four (4) GeoHTW8 Takeover Modules are allowed for GeoAlarm Panel. However, for installations conforming to UL or ETL requirements, only one zone per GeoHTW8 Takeover Module can be designated as either a Fire or CO zone, and only one 4-wire smoke detector or CO detector may be added to that single zone on the GeoHTW8.

In addition to its practical benefits, the GeoAlarm GeoHTW8 maintains the high standards of security and reliability that users expect from Napco products. It ensures that all integrated sensors continue to function optimally, providing robust protection against potential threats. With the GeoHTW8, users can enjoy the peace of mind that comes with a modern, wireless security system while preserving the investment in their existing hardwired sensors.

Product Features:

Ideal for retrofitting existing systems hardwire sensors
Converts up to 8 wired zones into 8 supervised wireless zones
Status LED through housing cover
Up to 4 retrofits (32 wired zones max.) are allowed by GeoAlarm panel

GeoAlarm GeoHTW8 Product Specifications:

Dimensions (H x W x D): 6" x 3.5" x 1.5" in. (152.4 x 88.9 x 38.1 mm)
Input Power: Input 12VDC nominal, 55mA with no devices connected to Fire and Burg isolated power output terminals. 555mA maximum power rating with maximum devices as Smoke, CO, motion detectors connected to Fire and Burg power output terminals (500mA for burglary power plus 55mA for the module or 200mA for Fire/Burglary and 55mA for the module). Input power into the GeoHTW8 from a control panel or UL (or ETL) Certified Residential Fire/Burglary power limited power supply with battery backup to provide power if electrical power fails or drops to an unacceptable voltage level (a battery trouble is triggered if battery voltage falls below 9.5VDC).
Output Power: Burg Aux Power maximum 500mA. Fire Aux Power maximum 200mA. Maximum 200mA combined Fire/Burg Aux Power
End-of-Line Resistor: UL Certified end-of-line resistor required for Fire/CO zone (2.2K? default supplied, can learn 0 - 10K?)
Zone Loop:Current 3.7 mA, nom.; 5.5mA, shorted
PGM Output (for use in Burglary Applications only): 5mA, 12V
Ground Fault detections: 1.25 to ground or less
Low Current draw: 70mA (Max.), 70uA (standby)
Operating Temperature: 32 and 120.2°F (0 and 49°C)
Relative Humidity (Storage): 85% Max. (non-condensing)
Weather Proofing: Indoor use only

GeoAlarm GeoHTW8 Product Compatibility:

GeoCP-AT Control Panel
GeoCP-VZ Control Panel
